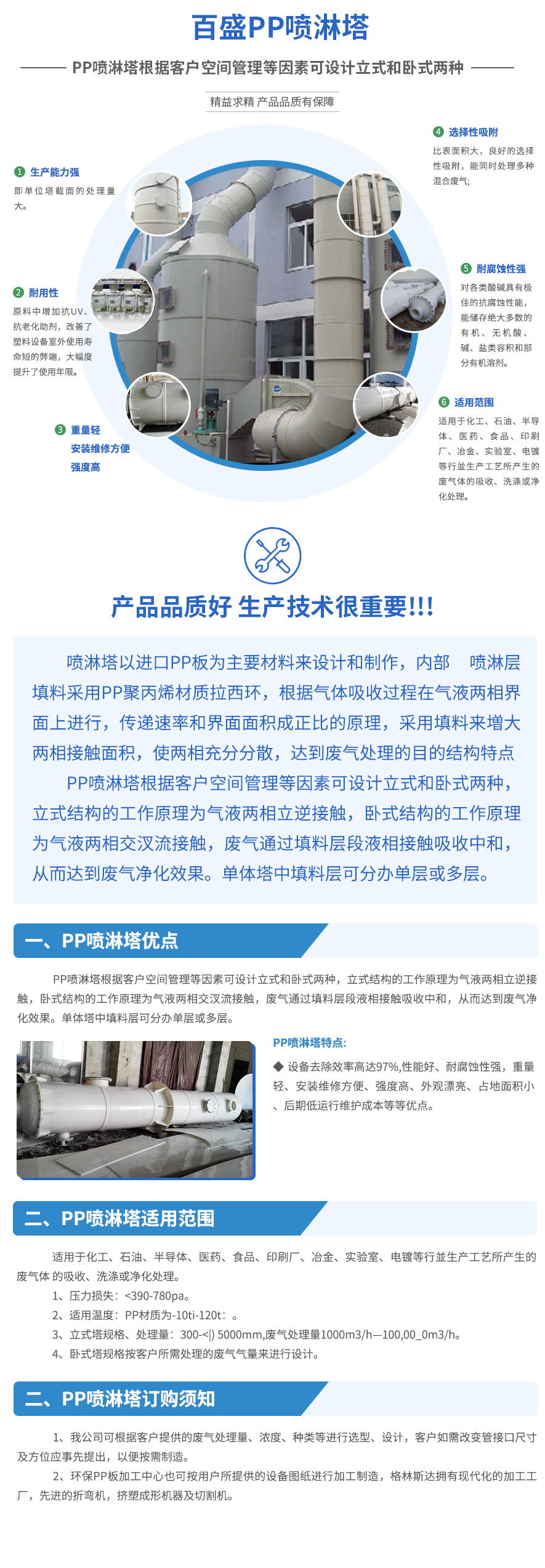

Spray tower

Good product quality, production technology is very important!!!

       The spray tower is designed and made with imported PP plate as the main material. The inner spray layer filler is made of PP polypropylene material ring, which is carried out on the gas-liquid two-phase interface according to the gas absorption process. The transfer rate is proportional to the interface area. Principle, the filler is used to increase the contact area of the two phases, so that the two phases are fully dispersed to achieve the purpose of the exhaust gas treatment.

The PP spray tower can be designed both vertical and horizontal according to factors such as customer space management. The working principle of the vertical structure is gas-liquid two-phase vertical contact, and the working principle of the horizontal structure is gas-liquid two-phase turbulent contact. The exhaust gas is absorbed and neutralized by liquid phase contact of the packing layer. Thereby achieving the exhaust gas purification effect. The filler layer in the monomer column can be divided into single layers or multiple layers.

First, the advantages of PP spray tower

The PP spray tower can be designed according to customer space management and other factors. The working principle of the vertical structure is gas-liquid two-phase vertical contact. The working principle of the horizontal structure is gas-liquid two-phase cross-flow contact, and the exhaust gas passes. The liquid phase contact of the packed layer absorbs and neutralizes, thereby achieving the exhaust gas purification effect. The filler layer in the monomer column can be divided into single layers or multiple layers.

PP item shower tower features:

◆The equipment removal efficiency is up to 979%, the performance is good, the corrosion resistance is strong, the weight is light, the installation and maintenance are convenient, the strength is high, the appearance is beautiful, the floor space is small, the operation cost is low, and so on.

Second, the scope of PP spray tower

Applicable to the absorption, washing or purification treatment of waste gas produced by chemical, petroleum, semiconductor, pharmaceutical, food, printing, metallurgy, laboratory, electroplating and other production processes.

1. Pressure loss: <390-780pa

2. The applicable temperature PP material is -101-120t:.

3. Vertical tower specification, processing capacity 300-5000m degree gas processing capacity 1003/ 100 0m3/h.4, horizontal tower specifications are designed according to the amount of exhaust gas required by customers.

Second, PP spray tower ordering instructions

1. Our company can select and design according to the amount of exhaust gas treatment, concentration and type provided by the customer. If the customer needs to change the size and orientation of the pipe interface, it should be proposed in advance so as to be manufactured on demand.

The environmentally friendly PP board processing center can also be processed according to the equipment drawings provided by the user. Greensda has a modern processing factory, advanced bending machines, extrusion molding machines and cutting machines.

PP spray tower ordering instructions

       1. Our company can select and design according to the amount of exhaust gas treatment, concentration and type provided by customers. If the customer changes the size and orientation of the pipe interface, it should be proposed in advance so as to be manufactured according to the same.

2. The environmental protection PP board processing center can also be processed according to the equipment drawings provided by the user. Greensda has a modern processing factory, advanced bending machine, extrusion molding machine and cutting machine.
